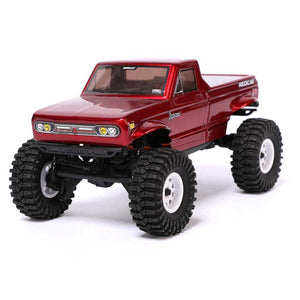

Redcat Ascent-18 RC Crawler - 1:18 Brushed Electric Rock Crawler

  • $119.95
    Unit price per
  • Save $0.04
Shipping calculated at checkout.


ASCENT-18 ROCK CRAWLER

The classically styled Ascent-18 is available in three body color options (Blue, Red or Graphite)

OVERVIEW

The Ascent-18 features ball bearings, hex drive hardware, portal axles, impressive steering angle, aluminum chassis rails, metal ring and pinion gears, machined aluminum spools, metal portal gears, 7mm wheel hexes, powerful 180 sized motor, precision metal geared micro servo, aluminum capped oil filled shocks, 750 mAh 2S LIPO battery pack and of course a Redcat 2.4Ghz radio system. We also launched a complete line of performance hop up parts that are available for the Ascent-18. We think you’ll be excited to see which performance parts we’ve decided to offer, as we think it will bring the already capable Ascent-18 to a whole new level.

Ball bearings: The Ascent-18 uses ball bearings, instead of bushings, throughout the vehicle to ensure smooth operation and longevity, setting it apart in the 1:18 scale crawler market.

Hex hardware: We have used high quality hex hardware for durability and ease of routine maintenance.

Impressive steering angle: The Ascent-18 features an impressive amount of steering. Its steering angle helps the Ascent-18 to pull through tight situations while navigating its way through gnarly obstacles.

Precision metal geared micro servo: The included Hexfly HX-M4K 4kg coreless metal gear micro servo may be small, but it packs a punch.

Aluminum chassis rails: A 2mm flat rail aluminum chassis is the perfect balance of strength and performance. It’s lightweight allows the Ascent-18 to glide over obstacles while providing a rigid backbone for stable performance.

Portal axles: Portal axles offer the benefits of increased ground clearance and reduced torque twist. Metal portal gears, ring gears and pinion gears are used to ensure the Ascent-18 runs smoothly time after time.

Machined aluminum spools: The machined aluminum spools help to maintain constant traction to all four tires.

7mm wheel hexes: 7mm wheel hexes allow the driver to choose from many popular wheel and tire options on the market today.

Aluminum capped oil filled shocks: Smooth action aluminum-capped oil filled shocks ensure consistent performance on every trail.

Powerful 180 sized motor: The included 180 size motor is the biggest motor we could fit in such a small crawler. Additionally, there are already many motor upgrade options on the market today that will drop right into this amazing little crawler.

Front tilt body: The Ascent-18's front tilt body mounting system simplifies maintenance and enhances its aesthetic appeal. The quarter turn locking mechanism makes keeping up with body clips a thing of the past.

2.4Ghz radio system: The included high quality 2.4Ghz radio system offers dual rates, channel reversing and trims for precision control. The receiver and ESC, which are built into a single compact unit, keep weight to a minimum and also maximize this tiny crawler’s chassis real estate. Ready-To-Run (RTR): The ascent-18 is completely Ready-To-Run and includes all electronics, radio, rechargeable 750 mAh 2S LIPO battery pack and charger.

Available brass performance hop up parts include: Inner portal axle box, outer portal axle box cover, servo mounting bracket, diff covers, front/rear upper links, front/rear lower links, steering link, center skid plate, and wheel hexes.

Available aluminum performance hop up parts include: Servo mounting bracket, diff covers, front/rear upper links, front/rear lower links, steering link, shock bodies, center skid plate, and servo horn.

Available steel performance hop up parts include: Steel transmission gear set.

TECH SPECS

Vehicle Scale

1/18

Engine / Motor

RC180 Brushed Motor

Transmission

Forward & Reverse

Drive System

4 Wheel Drive

Length

218mm

Width

130mm

Height

114mm

Servo Type

4kg Metal Gear Waterproof Servo

Wheelbase

155mm

Ground Clearance

42mm

Chassis Type

2mm Flat Rail Aluminum

Wheel Width

15mm

Wheel Diameter

25.5mm

Suspension

Aluminum Capped Oil Filled Shocks

Speed Control Type

2in1 ESC/Receiver Brushed

Radio System

2.4GHz Radio System

Battery

7.4v 750mAh LiPo with USB Charger Included

Needed to Run

4 AA Batteries for Radio


FEATURES

FRONT TILT BODY MOUNTING SYSTEM

Body is hinged at the front for a clean look as well as quick access to electronics


PORTAL AXLES

BEARING SUPPORTED METAL AXLE GEARS

SMALL PACKAGE BIG PERFORMANCE

Built for fun - Built to perform - Built to last

REDCAT CLASSIC WHEELS

Classically styled off road wheels wrapped with aggressive 60mm open lug soft compound rubber tires

PERFORMANCE TUNED SHOCKS

Aluminum capped oil filled coilover shocks

4-LINK SUSPENSION & METAL CHASSIS FRAME

REDCAT MULTI-CHANNEL RADIO & RECEIVER

Ascent-18 comes with 750mAh LiPo battery, USB charger, multi-channel radio with 2-in-1 receiver

COMPLETE LINE OF UPGRADES AVAILABLE

Take the Ascent-18 to the next level with our brass & aluminum performance upgrades
